DREDGING AND MARINE EQUIPTMENT
DREDGE E. R. ADAMS
1970: REBUILT 1987.
- HULL:
150′ X 44′ X 9′ - 9 WATERTIGHT COMPARTMENTS
DREDGE:
MODEL PAGE PC822 BOOM 90′
INSTALLED POWER 1,890 HP/ 1410 kw.
- ELECTRONICS:
DGPS CLAM VISION HYPACK DREDGE POSITIONING - DREDGING OPERATION CAPACITY:
MAINTENANCE MATERIAL 15CY, 18CY & 22 CY BUCKETS
FIRM MATERIALS 14 CY BUCKETS
SAND AND HARD MATERIALS 7CY & 9CY - SPUDS:
TWO- 48″ SQUARE POWER UP AND DOWN
MID- SHIP PORT AND STARBOARD 97′
LENGTH HYDRAULIC POWERED WALKING
SPUD 40″ SQUARE 97′ LENGTH - FUEL:
20,000 - WATER, POTABLE:
3,500 GALS. - SPUD WINCHS:
150 HP DC ELECTRIC 2″ DIAMETER WIRE ROPE - DECK HOUSE:
22’X 40′
GALLEY
MARINE SANITATION SYSTEM
CAPTAIN’S ROOM
ENGINEERS’ OR INSPECTOR’S ROOM
TOOL ROOM
DREDGE #53-1974
- HULL:
165′ X 60′ X 10.3′
22 COMPARTMENTS DREDGE:
WASHINGTON MODEL32-130
BOOM 130′
INSTALLED POWER 2,550 HP/ 1410 kw- ELECTRONICS:
DGPS HYPACK DREDGE POSITIONING - DREDGING OPERATION:
MAINTENANCE MATERIAL 30CY
FIRM MATERIALS 18 CY BUCKETS
SAND AND HARD MATERIALS 10CY & 15CY - SPUDS:
2, 48″ SQUARE POWER UP AND DOWN MID SHIP PORT AND STARBOARD 97′ LENGTH HYDRAULIC POWERD WALKING SPUD 48″ SQUARE 97′ LENGTH - FUEL:
100,000 - WATER, POTABLE:
3,500 GALS. - SPUD WINCHS:
125 HP DC ELECTRIC 2″ DIAMETER WIRE ROPE - DECK HOUSE:
LEVEL 1
22’X 40′
GALLEY & OFFICES
MARINE SANITATION SYSTEM
CAPTAIN’S ROOM
ENGINEERS’ OR INSPECTOR’S ROOM
TOOL ROOM - LEVEL 2
SPUD MACHINERY OPERATOR CONTROLS

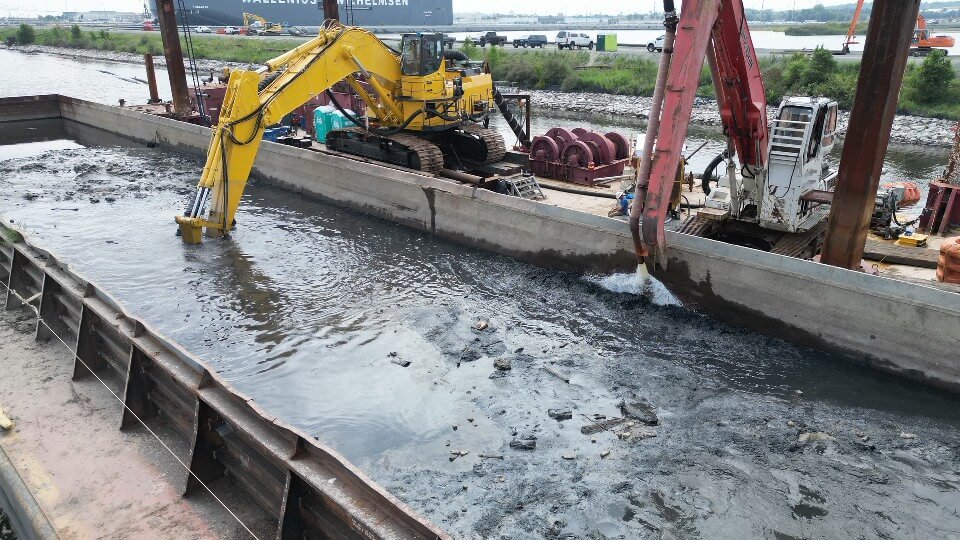

LMC UNLOADER #8-1968
- LENGTH:
175 FEET - BREADTH: 44 FEET
- DEPTH: 9 FEET
- DRAFT (WORKING): 4.5
CAPACITITIES
FUEL:
20,000 GALLONSPORTABLE WATER:
1,000 GALLONSLUBE OIL:
200 GALLONS- HYDRAULIC OIL:
1,000 GALLONS - MAIN PUMP ENGINES:
CAT C32
SHAFT HORSEPOWER 850 - MAIN PUMP:
DAMEN DOP 450 LD(450 MM) - BOOSTER PUMP #1 ENGINE:
GIW LSA 44
CATAPILLAR D399 1340 HP - BOOSTER PUMP #2 ENGINE:
GIW WBC-46
CATAPILLAR D399 1340 HP - SPUD WINCH:
HYDAULIC - SNORKEL DEPTH:
30 FEET - SPUDS:
30″X 30 X 90′ - MAIN GENERATOR #1:
JOHN DEERE 75 KW - AUXILIARY GENERATOR:
KOHLER 35 KW - DAMEN JET WATER #1:
10″ FAIR BANK MORRIS 350 HP
DAMEN JET WATER #2:
10″ FAIR BANK MORRIS 350 HP - DILUTION PUMP #1:
12″ 300 HP JOHN DEERE
DILUTION PUMP #2:
12″ 300 HP JOHN DEERE - BARGE POSITIONING WINCH:
DP HYDRAULIC WINCH
LMC SCOWS

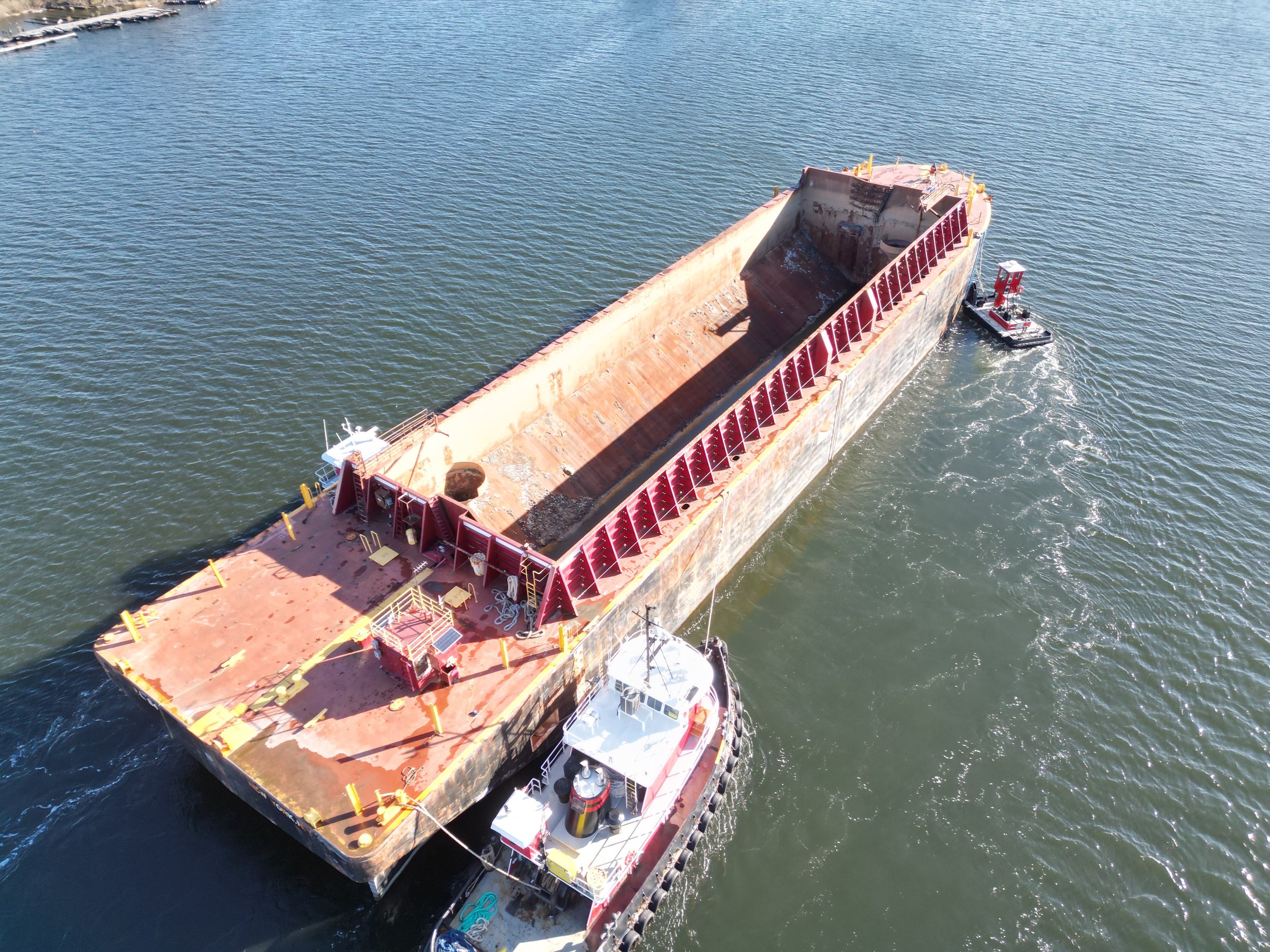

LMC 61 & LMC 64 Hydraulic open/ close Split Hull Bottom Dump Scovvs
Capacity 6,000 cubic yards
Length 277′
Width 64′
Depth. 27′
Light Draft 3.8′
Loaded Draft 22.8′

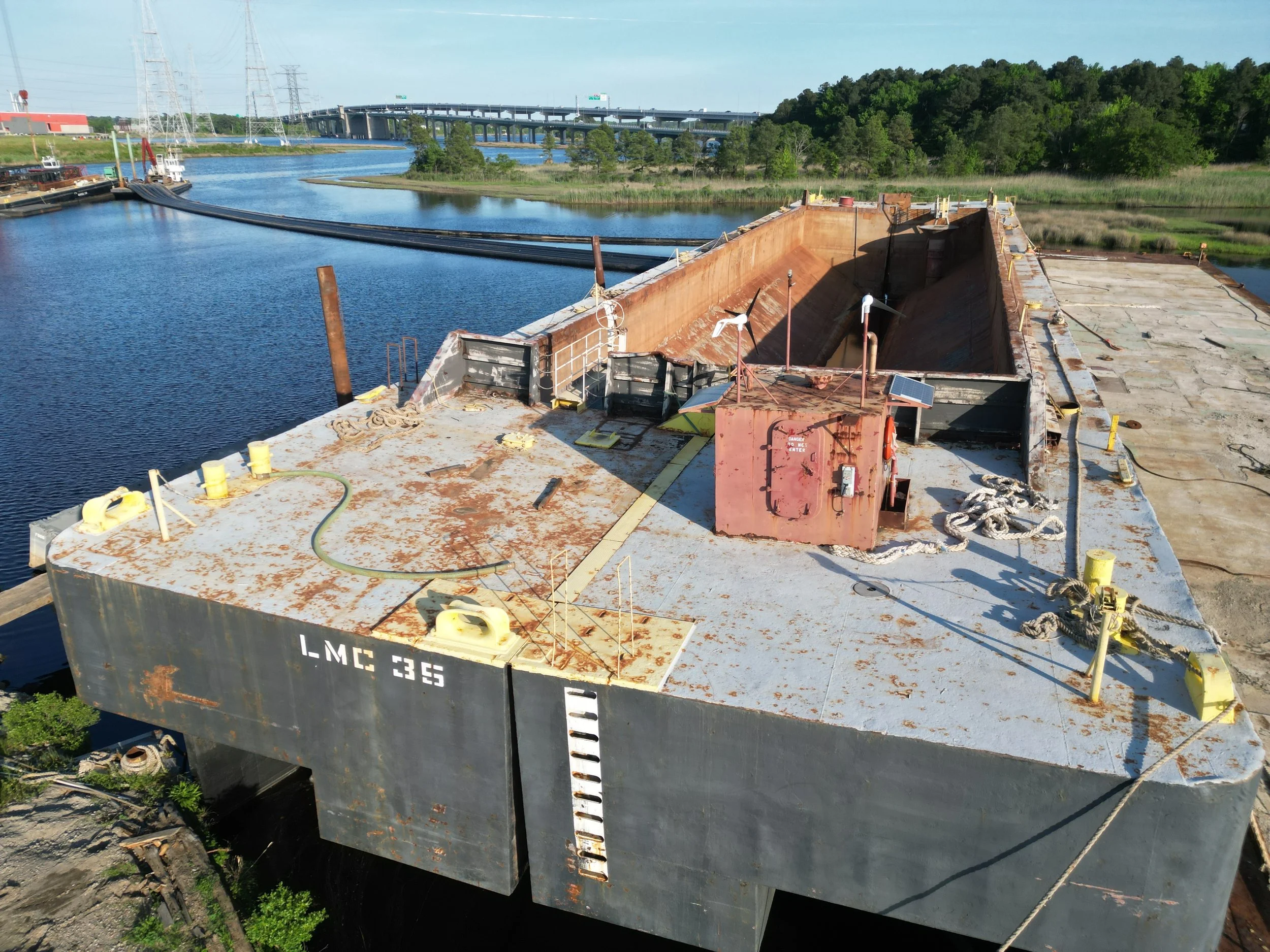

LMC 33 & LMC 35 Hydraulic open I close Split Hull Bottom
Capacity 3500 cubic yards
Length 234′
Width 53′
Depth 23′
Light Draft. 3.5′
Loaded Draft 18′
LMC Sealed Hopper Barges – 1986
LMC 230, 231, & 232
Capacity 5,500 cubic yards
Length 311′
Width 52′
Depth 17′
Light Draft 2.5′
Loaded Draft 14′
